A programmable logic device (PLD) is a general-purpose chip whose internal logic is configured after manufacturing — by programming it — rather than fixed by the silicon mask. The user provides logic equations or a netlist; the chip’s programmable connections are set to implement them.
The two early flavors of PLD are the PLA and the PAL. They share a structure: a layer of AND gates produces product terms from the inputs and their complements, then a layer of OR gates combines those product terms into outputs. They differ in which layer is programmable.
PLA — Programmable Logic Array

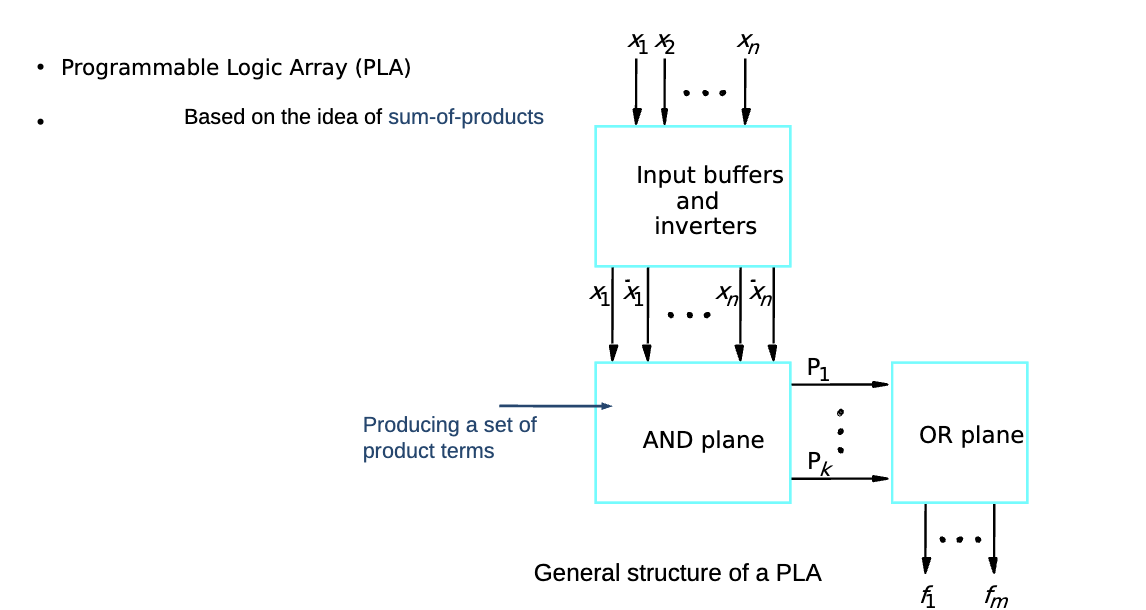

A PLA has both planes programmable: the AND plane and the OR plane.
Inputs and their complements feed every AND gate via a programmable crosspoint matrix. The user picks which inputs feed which AND gates to form any product term. Then the products feed every OR gate via a second programmable matrix, picking which products go into each output.
The flexibility lets a PLA implement any SOP expression for multiple outputs, sharing common product terms across outputs (which saves area when several outputs use overlapping logic). The cost is silicon: two large programmable arrays.
PAL — Programmable Array Logic

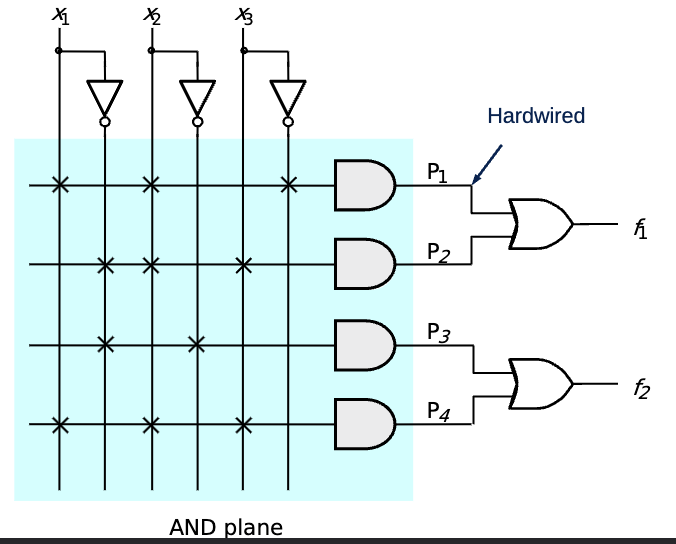

A PAL is a stripped-down PLA: only the AND plane is programmable. Each OR gate has a fixed set of product terms allocated to it.
That gives up sharing but is much cheaper to manufacture and faster (one less programmable layer of fuses or transistors to traverse). A PAL works well when each output’s logic is small and independent — typical glue logic.
When you’d reach for these
PLAs and PALs predate FPGAs and have been mostly displaced by them for medium-to-large designs. Simple PLDs — GAL chips and small CPLDs (clusters of GAL-style macrocells with interconnect) — still ship today for low-cost glue logic, board-level signal routing, and tiny embedded controllers where an FPGA would be overkill on cost, power, or boot time. The conceptual structure (AND plane → OR plane = SOP) still matters because it’s the mental model for LUTs in modern FPGAs.
For larger and more flexible programmable logic, see Field-programmable gate array.
