A heat map uses color to represent the value at each cell of a two-dimensional grid. It’s the natural way to visualize a matrix — anything where we have a value indexed by two categorical or two binned-numerical dimensions.

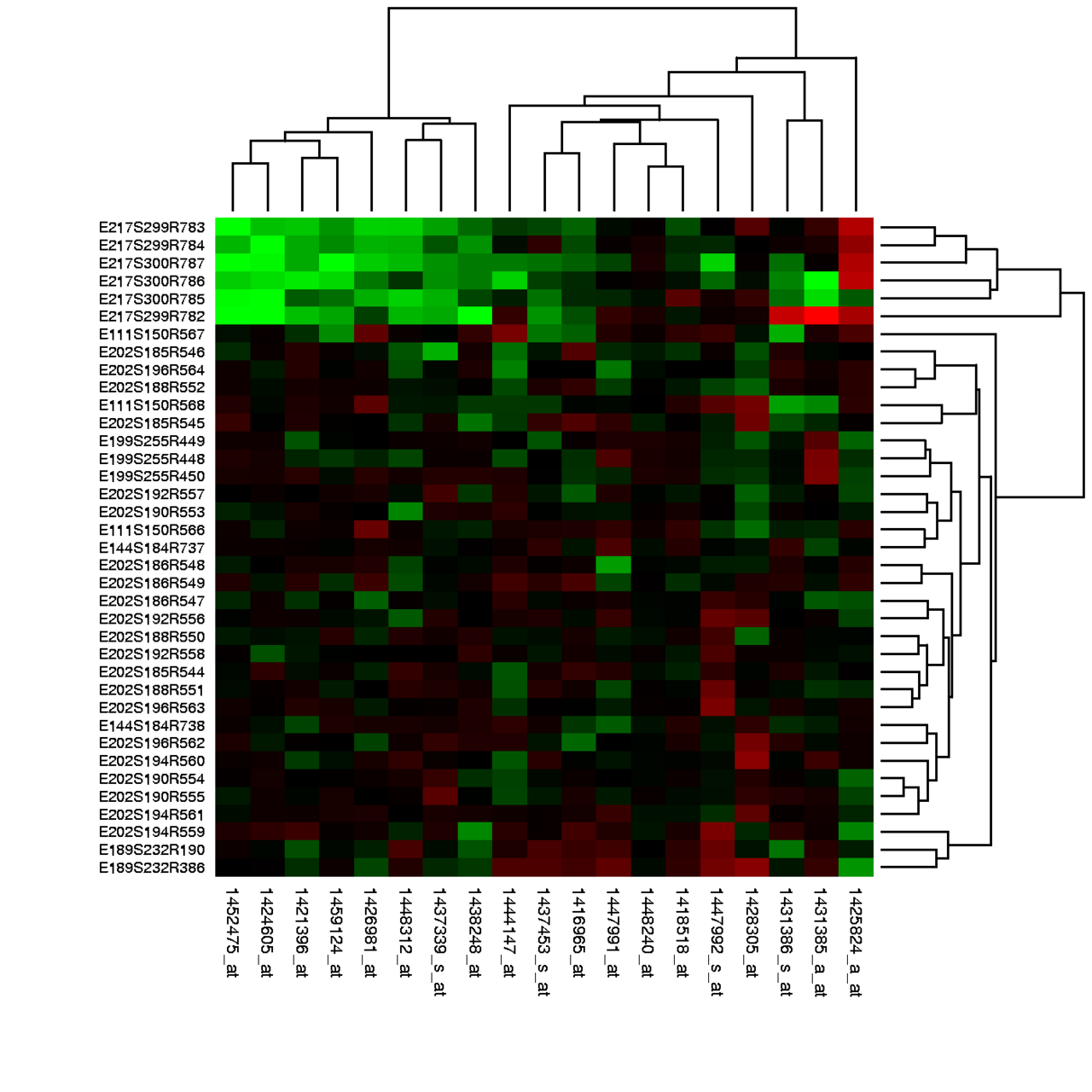

Image: Heat map of DNA microarray expression data, public domain
The classic example in machine learning is the Confusion matrix: rows are true classes, columns are predicted classes, and the color of cell shows how often class was predicted as class . A perfect classifier produces a heat map with bright cells on the diagonal and dark cells everywhere else; a confused classifier shows off-diagonal brightness wherever it makes systematic mistakes.
Other common uses:
- Correlation matrices — a square heat map where cell shows the correlation between feature and feature . The diagonal is always 1; off-diagonal patterns reveal which features move together.
- Geographic data on a regular grid — temperature, rainfall, population density. Each cell is a geographic patch, color shows the value.
- Genomic data — gene expression across samples, where rows are genes, columns are conditions, color is expression level.
- Any time-by-category visualization — number of customers by hour and day of week, energy usage by month and year.
The choice of colormap matters. Sequential colormaps (like viridis, plasma, magma) work for values that have a natural ordering low-to-high. Diverging colormaps (red-white-blue, for instance) work when the meaningful axis is distance from a neutral midpoint — positive vs. negative correlations, deviations above and below a baseline. Qualitative colormaps (tab10, Pastel1) are the wrong choice for heat maps because their colors aren’t ordered.
In Matplotlib, ax.imshow(matrix, cmap='viridis') draws a heat map. plt.colorbar(...) adds the legend that maps colors back to numeric values, which is essential — a heat map without a colorbar is impossible to read precisely.
